Adey are creators of the pioneering magnetic filters, establishing a new industry standard product, and revolutionising heating systems. Magnetic filters are now a specified installation requirement throughout a range of sectors.

With sustainability at the heart of their Ethos, Adey have specifically designed their filters to not only better the environment but also prolong the life of your boiler.

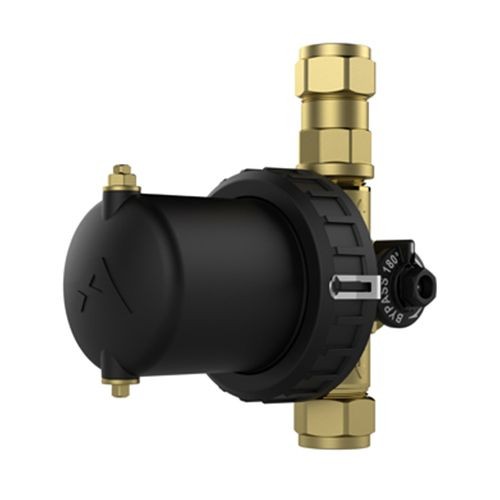

MagnaClean Atom Filter

Specifications

• Height: 95mm
• Width at lid: 95mm
• Width (including valves): 148mm
• Distance between filter centre and valve centre: 100mm
• Weight: 1.44kg

Canister

• Manufactured from glass reinforced polymer
• Fluid capacity: 230ml
• Inlet Diameter: 22mm compression
• Outlet diameter: 22mm compression
• One direction flow configuration
• Magnet length: 82.5mm
• Magnet diameter: 20mm

Drain Port

• Manufactured in Brass
• Drain plug thread M8 (non-standard)
• EPDM seals

Bleed Valve

• Manufactured in Brass
• Thread Interface: M6

Servicing and Clearance

• Air vent (top):20mm
• Drain Plug: 30mm

Product Benefits:

• Only 115mm is required for installation
• Fits vertical and horizontal pipework
• The canister can be placed in 4 positions
• Filter can be switched to by pass so no need to turn off when servicing
• Quick and easy chemical dosing
• 6% annual saving on heating bills
• Immediate and ongoing system protection - extended system life
• Reduced carbon emissions
• 10 Year warranty (when registered within 30 days of installation)
• Product code: FL1-03-03779

Images are for illustration purposes only
